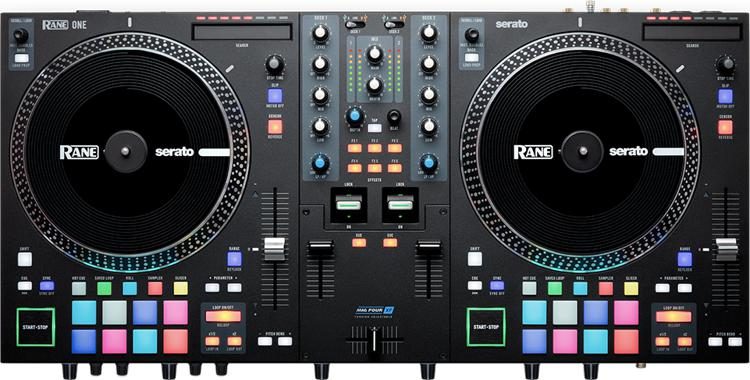

RANE DJ ONE Professional

Designed with RANE’s trusted solid build quality, and globally respected pro-audio quality, the RANE ONE professional motorized DJ controller is a complete DJ solution designed around RANE’s intuitive performance layout. Proudly showcasing all the trusted hallmarks of RANE’s build quality and intricate DNA, the ONE continues RANE’s dedication to the foundations of the art of DJing in a digital world to a wider audience of DJs.

The RANE ONE lands in a unique space in the current DJ market incorporating motorized 7″ turntable platters for a more traditional vinyl feeling, complete with a customizable high/low torque setting. The ONE gives DJs authentic, tactile control over their music and performance with the foundation art of DJing at its very core. And RANE finished it off with a traditional turntable plunger style start/stop button.

Control and Effects
Craft your sound with RANE ONE’s multi-function, independent performance pads, giving you access to Hot Cues, Saved Loops, Roll, Sampler, Slicer and Serato’s Scratch Bank feature. With 6 radio-style FX buttons, instantly activate any combination of software FX with a single press, fine-tune with depth and beat parameter controls, then activate with the independent aluminum paddle controls. Finally, take full control of your sound with the 3-band dynamic EQs and high/low pass filters on each deck along with dedicated loop controls.

Plenty of Ways to Connect
RANE’s reputation for high-quality sound, and extended pro-connectivity, continues with the ONE. Each deck is switchable between two USB laptop connections as well as a line input that’s switchable to phono for traditional turntables. Amplify your music through RANE’s pro audio circuitry to the balanced main and booth XLR outputs, and additional RCA main out. There are two dual TRS/XLR microphone inputs alongside an auxiliary input, giving you up to five sources of audio to mix.

Precision Cuts

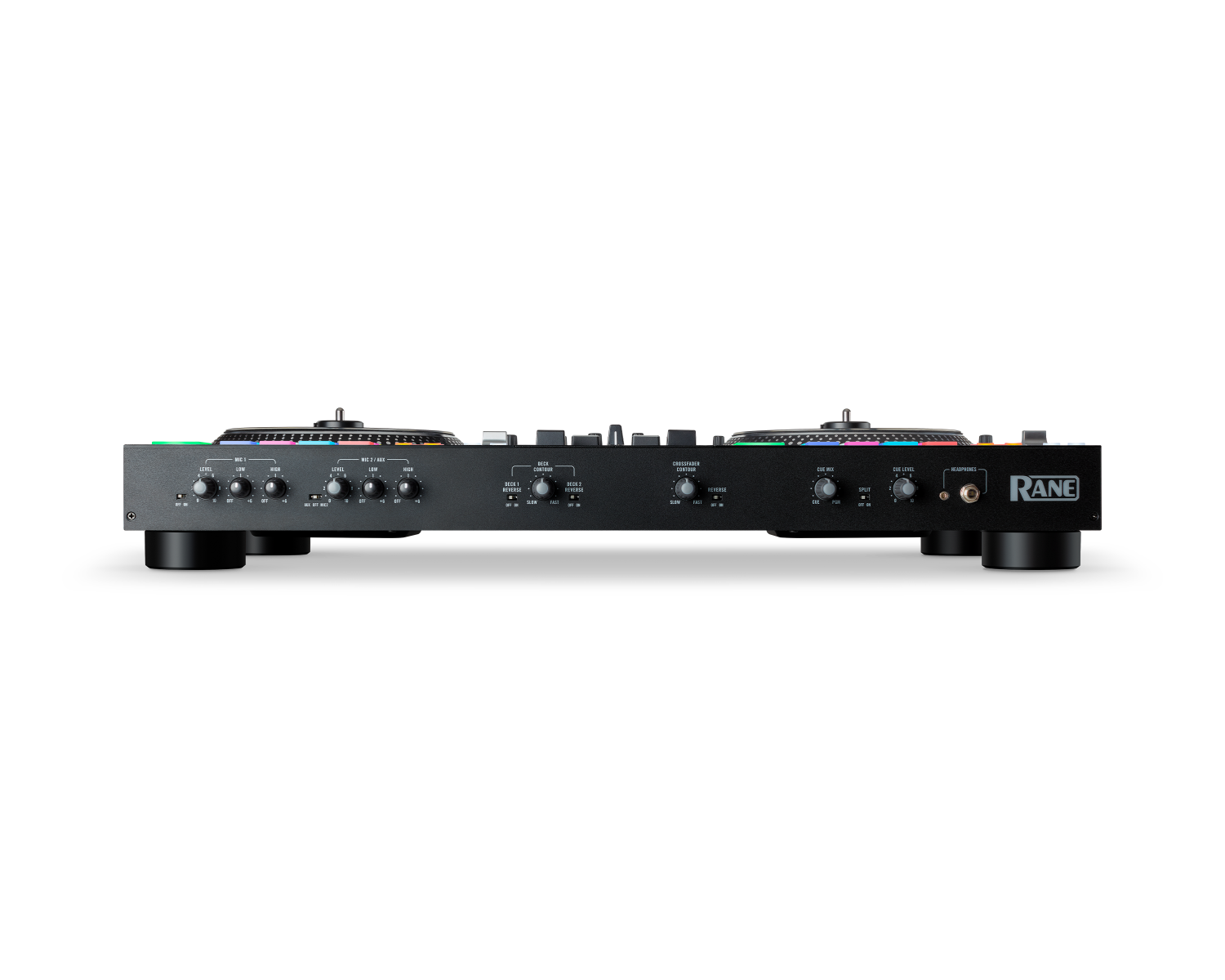

The ONE’s crossfader features the latest MAG FOUR fader, RANE’s lightest and smoothest fader, ever. With front panel controls for fast/slow contour adjustment, internal tension-adjust, reverse switch, and a new-to-Serato software cut in adjustment control, DJs will be able to get just the right feel they need for maximum performance.

Dedicated Loop
Featuring a dedicated loop section, the ONE allows DJs to loop a section of their track at the touch of a button with double and half controls instantly accessible. Relooping and manual in/out controls are also available to ensure complete freedom in track and mix control.

Features
7.2″ motorized platters with quick release acrylic disks
Instant access software FX with 2 metal FX paddles
Ultra-light MAG FOUR crossfader
High/Low-pass filter and 3-band EQ
Dedicated loop controls
Independent multi-mode performance pads including Serato
Scratch banks
Turntable style start/stop
XLR main and booth outputs
2 line/phono inputs
2 TRS/XLR microphone inputs
2 USB computer connections
Portable DJ controller
Weight: 24 lb.
Serato DJ Pro included
Specifications Digital Audio
Converters
Cirrus Logic, 24-bit PCM, 48kH
Digital Signal Processing
32-bit, Floating Pont, Double precision
Dynamic Range (A-weighted, unity gain)
ADC: 113dB
DAC: 113dB
CD Input to Analog Output: 110dB
CD Input to USB Output: 113dB
USB Input to Analog Output: 113dB
Inputs
Microphone 1/2 (Combo XLR/1/4” [6.35mm] TRS, Mic/Line switchable)
Analog Gain: 25dB
Maximum Input: 110mV
Gain Trim: Off to +26dB (unity at center)
Tone Control: 2-band
Aux Input (RCA stereo pair)
Maximum Input: 4Vrms
Dynamic Range (A-weighted): 114dB
Gain Trim: Off to +12dB
Tone Control: 2-band
CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
CD: Line
Maximum Input: 4Vrms
Gain Trim: Off to +12dB
Tone Control: 3-band, full-cut to +10dB
THD+N (20kHz BW @ 1kHz): 0.004%
Phono: RIAA
RIAA Curve: +/-0.25dB
Gain (@ 1kHz): 31.5dB
Maximum Input (@ 1kHz): 106mV
Dynamic Range (A-weighted): 102dB
Outputs
Main Outputs (XLR)
Gain Trim: Off to 0dB
Maximum Output: 8Vrms
THD+N (20kHz BW @ 1kHz): 0.004%
Frequency Response: Flat
Booth Outputs (XLR)
Gain Trim: Off to 0dB
Maximum Output: 8Vrms
THD+N (20kHz BW @ 1kHz): 0.004%
Frequency Response: Flat
Master Outputs (RCA stereo pair)
Maximum Output: 4Vrms
THD+N (20kHz BW @ 1kHz): 0.004%
Frequency Response: Flat
Headphone Outputs (1/4”/6.35 mm & 1/8”/3.5 mm TRS)
Maximum Output Voltage: 4Vrms (no load): 50mW (50 ohms)
Output Power: 0.004%
Dynamic Range (A-weighted): 108dB
General
Pads
16 velocity-sensitive multi-color back-lit pads (8 per deck, 8 modes each)
Faders
1 MAG FOUR tension-adjustable crossfader with independent Contour and Reverse controls
2 Standard channel faders with shared Contour and Reverse controls
Connectors
2 XLR outputs (Main)
2 XLR outputs (Booth)
1 RCA stereo output pair (Master)
2 XLR / 1/4” (6.35mm) TRS inputs (Mic 1–2) (2) RCA stereo input pairs (Deck 1–2)
1 RCA stereo input pair (Aux)
1 1/4” (6.35mm) TRS output (Headphones) (1) 1/8” (3.5mm) TRS output (Headphones)
2 USB Type-B ports
1 IEC power cable input
Power
Connection: IEC
Voltage: 100–240V, 50/60Hz
Consumption: 50W
Dimensions (WxDxH)
26.5” x 13.6” x 4.9”, 674 x 345 x 124.3 mm
Weight (including platters)
23.55 lb. 10.68kg
