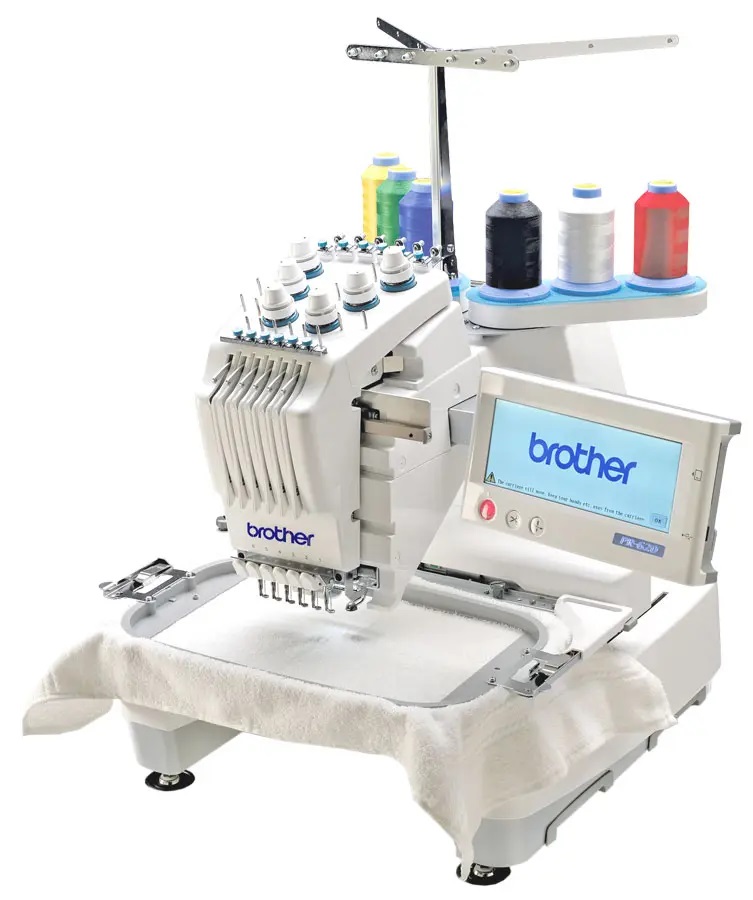

Brother PR-620 Embroidery Machine
6 NEEDLE 8 X 12″
When embroidery is your passion, the PR-620 is ready for you! Your home is decorated with embroidery accents. Both family and friends have been touched by your personalized gifts. You dream about embroidering for a living. You can live the dream with the Brother PR-620.
No other machine is as easy as a home machine with the speed of an industrial machine. It’s compact enough to fit on a table top. And yet it has the features to bring your creations to life quickly. With simple touch screen editing and four ways to access designs, the Embroidery Professional will never limit your creativity.
Brother PR-620 Benefits
6 NEEDLES + 6 COLORS = 0 COLOR CHANGES
Save time and effort! With 6 needles, there is no need to rethread after each color change. Assign each needle a color then sit back and watch. Your design will be stitched out at an amazing maximum speed for 1,000 stitches per minute.
NO-HASSLE AUTOMATIC THREADING
Just push a button and the thread is placed through the eye of the needle. It’s never been easier.
DUPLICATE YOUR DESIGNS WITH EASE
Sew multiple designs at the same time in one hoop. Badges, patches, or any project with a repeating pattern becomes fast and easy. Just touch the screen to add rows or columns to the design. Up to 30 rows and 30 columns are possible! No copy-and-paste drudgery, either.
CUSTOMIZE QUICKLY WITH THE TOUCH SCREEN
Just touch the screen to combine, reposition, rotate, change thread colors and add text. The easy to read color LCD touch screen makes it simple to edit the design. Every design embroidered will look exactly as you envisioned. Works well with the many built-in designs. Alter them as needed to fit your style!
MULTIPLE SOURCES OF DESIGNS
There are four ways to read a design into the PR-620. Use a floppy disk drive, flash memory card, embroidery card or a direct USB computer connection! Create and edit designs on your laptop and send them straight to the PR-620. You can use all the favorites in your design library and open doors for all new designs, too!
Brother PR-620 Features
SEMI-INDUSTRIAL FEATURES
6 needles. 1 position for each needle
1,000 stitches per minute, maximum embroidery speed
1,000 stitches per minute, maximum fill speed
Stitch capacity
500,000 stitches per design. Or:
500 color changes. Or:
100 combined designs
CONVENIENCE FEATURES
Front loading bobbin system. Vertical rotary hook
Built in memory
Push button auto needle threader
Upper thread break sensors
Manual tension control
Auto thread trimmer. Upper and lower
Start / Stop button with lock feature
On screen speed control
Uses pre-wound bobbins
Select inches or millimeters as units of measure
TECHNOLOGY FEATURES
Color LCD touch screen. 4,096 colors
640 x 240 LCD size. Dot matrix layout
Touch screen pattern selection and editing
SUPPORT FEATURES
Built in operation guide
Built in help messages
Setup video included
Auto save feature. The last design is automatically saves when the power turns off or a power failure occurs
Shipping weight: 110 pounds or 50 kg
Machine weight: 81-1/2 pounds or 37 kg
Warranty
5 years limited
2 years computer circuit
1 year electrical
1 year parts
1 year labor
Ask about training and service programs
CUSTOMIZING FEATURES
Character / text array editing
Rotate pattern in increments of 1 degree or 90 degrees
Design size change on most designs. 10% smaller to 20% larger
Forward and reverse needle position placement. 1, 10, or 100 stitch increments
Instant needle edge placement. 8 starting and 8 ending positions
Thread color display in 7 options
Custom color display in 3 options
Original Palette
Custom Palette 1
Custom Palette 2
Embroidery fields. Four hoops included
Extra large. 7-7/8 inch x 11-3/4 inch
Large. 5-1/8 inch x 7-1/8 inch
Medium. 4 inch x 4 inch
Small. 1-1/2 inch x 2-3/8 inch
Hoop sensor advises hoop size for chosen design
Built in designs
59 designs
Large floral alphabet
13 alphabet styles
Exclusive script designs
10 frames with 12 design stitches
Monogram designs with frames. Designs and features of Baby Lock Embroidery Card #10
On screen stitch count and running time system
On screen design duplication (up to 30 times in both directions)
SOFTWARE & CONNECTIVITY
Embroidery card slot
Compact Flash memory card slot. Read and write
Floppy drive. Read and write
Direct computer connection. USB port
Reads multiple formats. PES, PEC, DST, PHC
Upgrade using Compact Flash memory card slot, floppy drive, or USB port
BROTHER PR-620 OPTIONAL ACCESSORIES
Cap Frame Hoop Set. Includes frame, driver and mounting jig. EPCF1
Cap Frame Only. EPCF
Table / Stand. EPSTAND
Bobbin winder device with metal bobbins. EPBW1
Bobbins. Pre-wound polyester
Brother Embroidery Professional Workbook
Brother embroidery cards and disks
OPTIONAL CAP HOOP
Use the optional cap hoop to make it easy and quick to embroidery caps. This snap on hoop allows embroidery along the curve of any cap. Buy extra cap frames to have several caps hooped and ready to snap in.
OPTIONAL HOOPS
Save valuable time with extra hoops in every size. Have your fabric prepped and ready to go when the machine finishes the current design. Four hoops are available.
Small. 1-1/2 inch x 3-3/8 inch. EPF60
Medium. 4 inch x 4 inch. EPF100
Large. 5-1/8 inch x 7-1/8 inch. EPF180
Extra Large. 7-7/8 inch x 11-3/4 inch. EPF300
